CUPOLAS
THE INDUSTRY'S LEADING MANUFACTURER OF LIGHT-GAUGE STEEL CUPOLAS
24", 36" & 48" Square Cupolas
Pre-painted 29ga construction
Available in over 100 standard colors plus Kynar
All metal edges are hemmed; no need to worry about red-rust
24", 36" & 48" ship knocked-down
Roof and sides interlock for weathertight connection
Flashing trim is available from MWI. With flashing sets, the mounting curb is made on-site by the contractor (build your wooden curb)
The universal base is also available. Ships are assembled separately from the roof and side assembly. Eliminates the need to have to build your wooden curb onsite.
Click here for Cupola Look Book.
STANDARD CUPOLAS
WEATHER-VANES
HUGE CUPOLAS

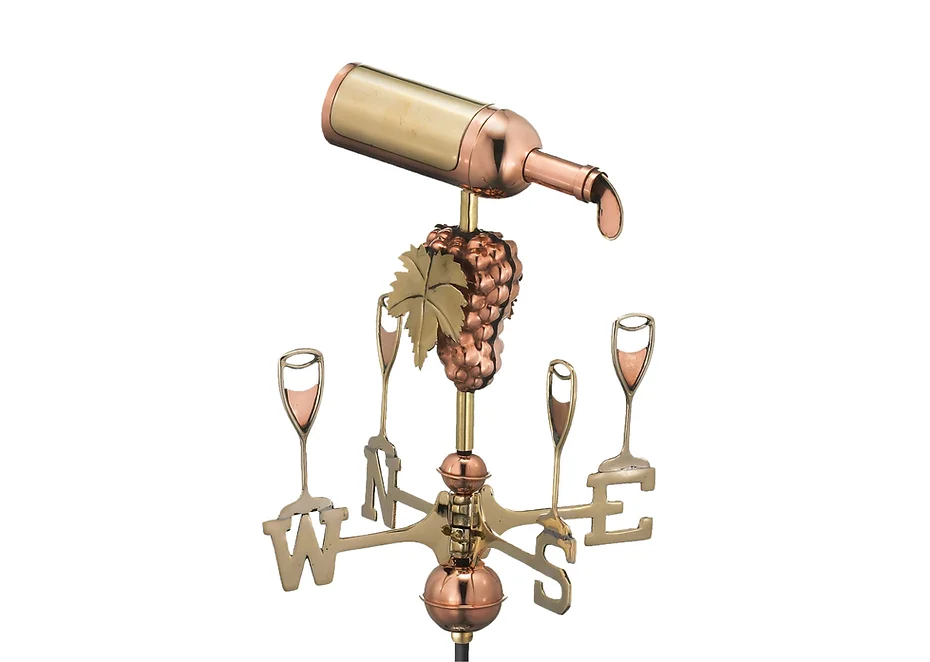

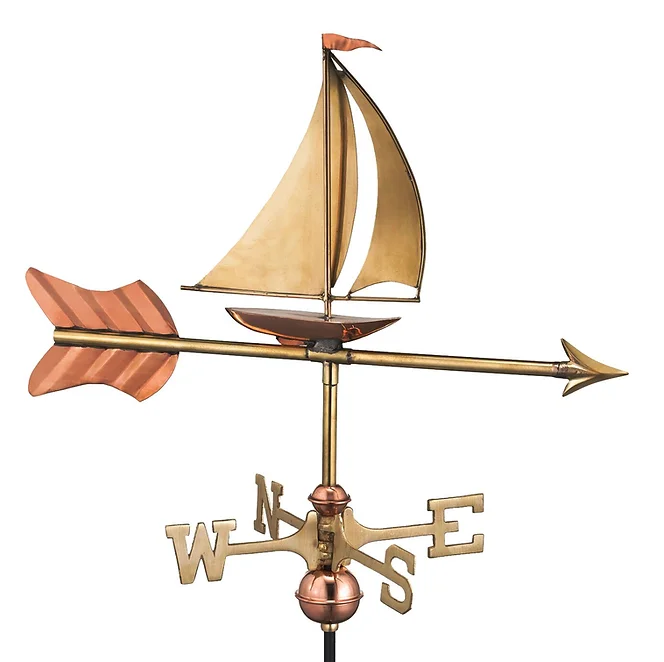

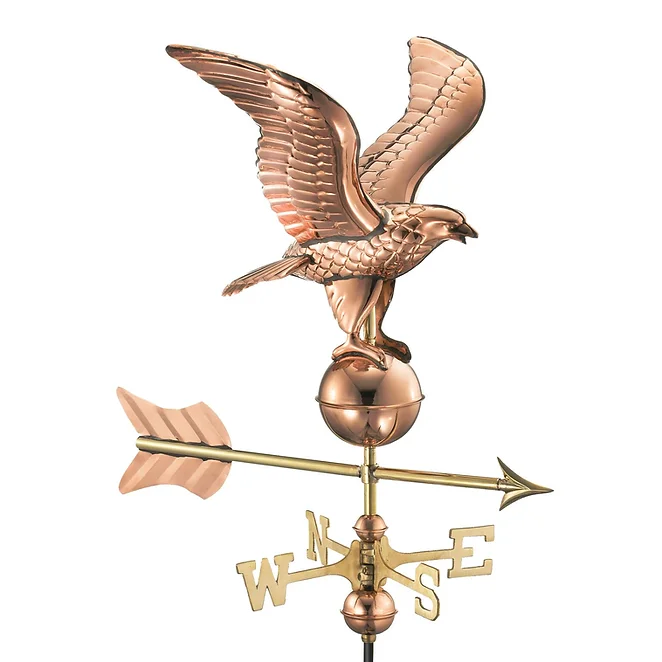

WEATHERVANES
Stock weathervanes come in 24", 30", and 46" sizes.
Non-stock weathervanes come in 30" a standard black finish. Specialty weathervanes in gold-bronze, patina, & copper are also available.
LARGER THAN LIFE CUPOLAS
These majestic, massive cupolas are available in either vented or window side configuration (48" & 84" Octagon and 66" Square Cupolas)
Louver sides contain two, 9-louver panels per side
Window sides contain two 6-light panels per side
Windows are 1/8” clear Polycarbonate with extruded PVC trim and mullions
100% silicone caulk is used to seal the window trim to the window panel and side wall steel
¾” ACX Plywood used in the roof module and sidewall construction
The roof and side walls are 100% clad in SMP-painted 29 gauge sheet metal
All exterior fasteners are zinc plated or plated with supplemental paint top coat
Powder-coated, trim components are coated with 3 – 4 mils of TGIC Powder available in smooth and textured finishes
48" & 84" Octagon Cupola
18 ga. welded frame
Prepainted roof and wall louvers
Roof and sides assembled at the factory
The total height of the 48" cupola is 77" (without weathervane)
The total height is of the 84" cupola is 138.125" (without weathervane)
Flashing trim is available from MWI Components. With flashing sets, the mounting curb is made on-site by the contractor (build your wooden curb)
The universal base is also available. Ships assembled separately of the roof and side assembly. Eliminates the need to have to build your wooden curb onsite.
66" Square Cupola
18 ga. welded frame
Prepainted roof and wall louvers
Roof and sides assembled at the factory
Total height is 80.5" with louvers (without weathervane)
Total height is 84" with windows (without weathervane)
Flashing trim is available from MWI Components. With flashing sets, the mounting curb is made on site by the contractor (build your own wooden curb)
Universal base also available. Ships assembled separate of the roof and side assembly. Eliminates the need to have to build your own wooden curb onsite.
MODEL:
C240/C360/C480/C660
24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Roof
Installs on top of the side sections
Ships knocked down (66” Cupola ships assembled)
MODEL:
C245/C365/C485/C665
24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Sides
Installs on top of any of the flashings
Ships knocked-down (66” Cupola ships assembled)
MODEL:
C245W/C365W/C485W/C665W
24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Sides with Windows
Installs on top of any of the flashings
Ships knocked down (66” Cupola ships assembled)
Grid Patterns: 24" = 2 x 2 (shown on reverse)
36" & 48" = 3 x 2 (as shown on the component diagram)
66" = 2 x 3 (two sets per side)
48" octagon = 2 x 4 (shown on reverse)
MODEL:
C241/C361/C481
24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Roof
Installs on top of the side sections
Ships knocked down (66” Cupola ships assembled)
MODEL:
C241P/C361P/C481P/C661P
24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Roof
Installs on top of the side sections
Ships knocked down (66” Cupola ships assembled)
MODEL:
C242/C362/C482/C662
C242HP/C362HP/C482HP
UNIVERSAL BASE
24" x 24", 36" x 36", 48" x 48", 66" x 66" Cupola Roof
Installs on top of the side sections
Ships knocked down (66” Cupola ships assembled)
